Pro Series S-NES50-1200X2400

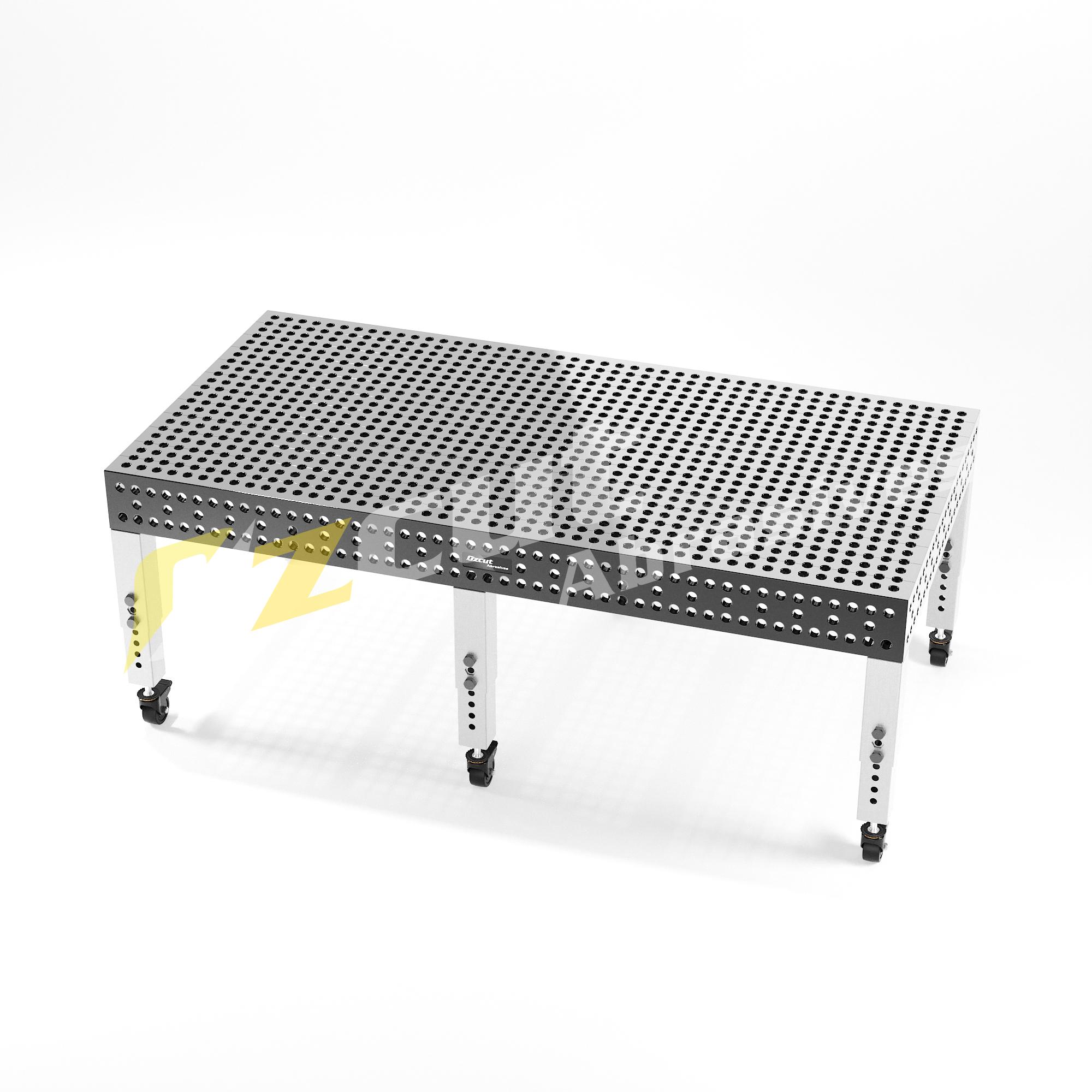

Pro Series 3D Welding Table 2400x1200 – 50x50 Hole Pattern & Perimeter Ruler

Name: Pro Series 3D Welding Table 2400x1200 – 50x50 Hole Pattern & Perimeter Ruler
Availability: PreOrder

Pre-Order Available

AUD $8,746

incl. GST

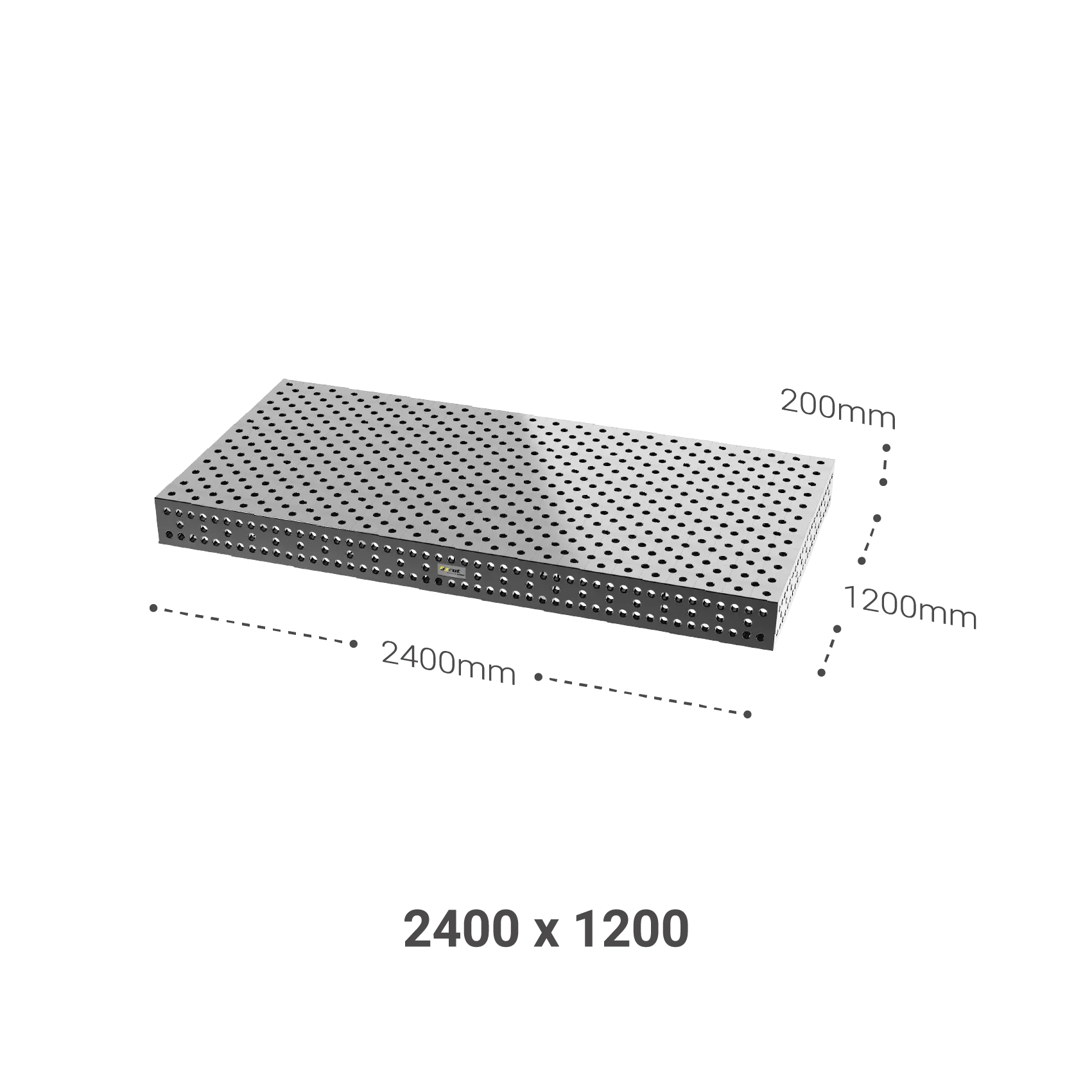

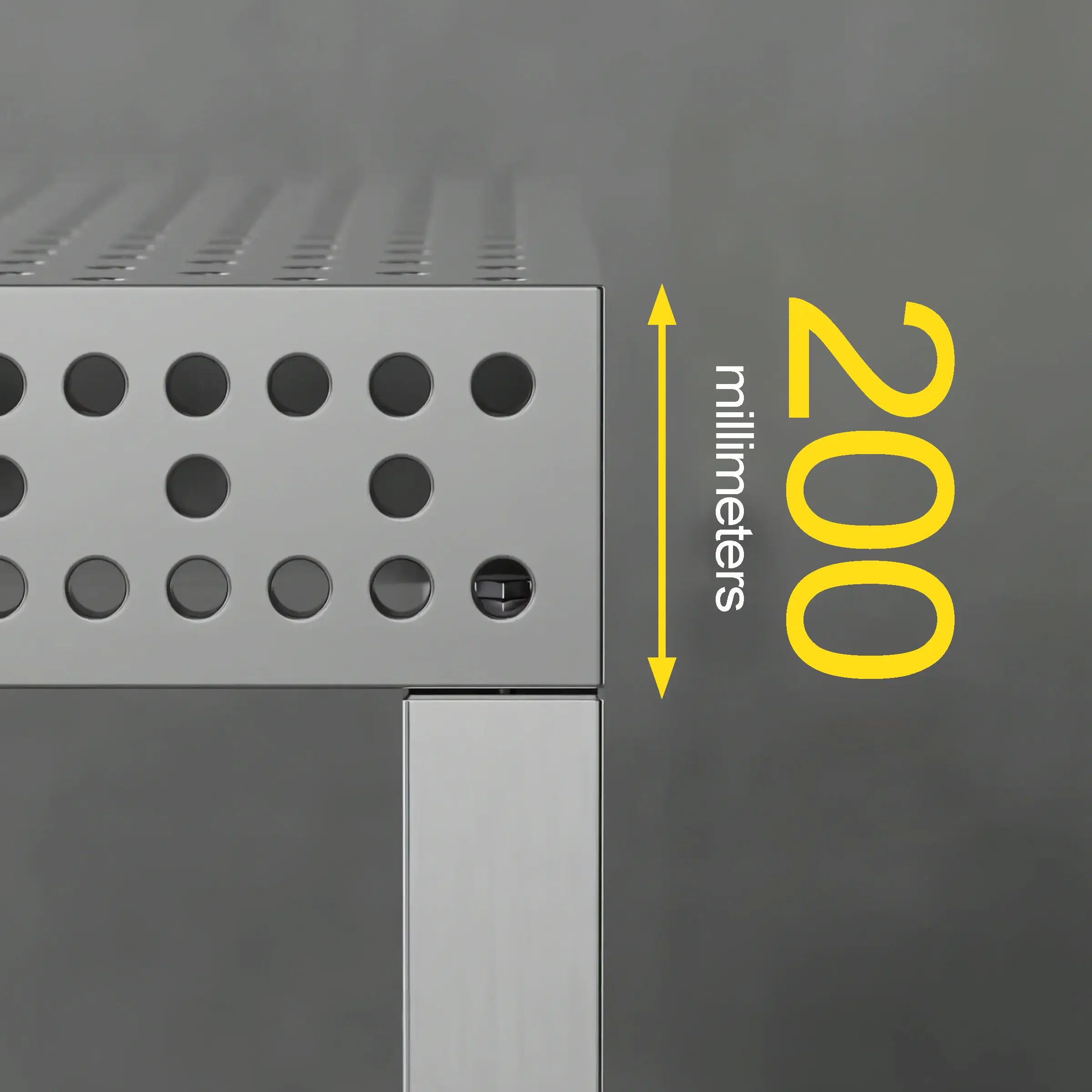

Table Top Size (mm): 2400x1200x200
Material: S355 Nitrided Steel
Perimeter Ruler Engraving: CNC Engraved (Two Sides)
Hole Pattern: 50x50mm (9 holes/100x100mm)
Holes & Table Edge: Radius

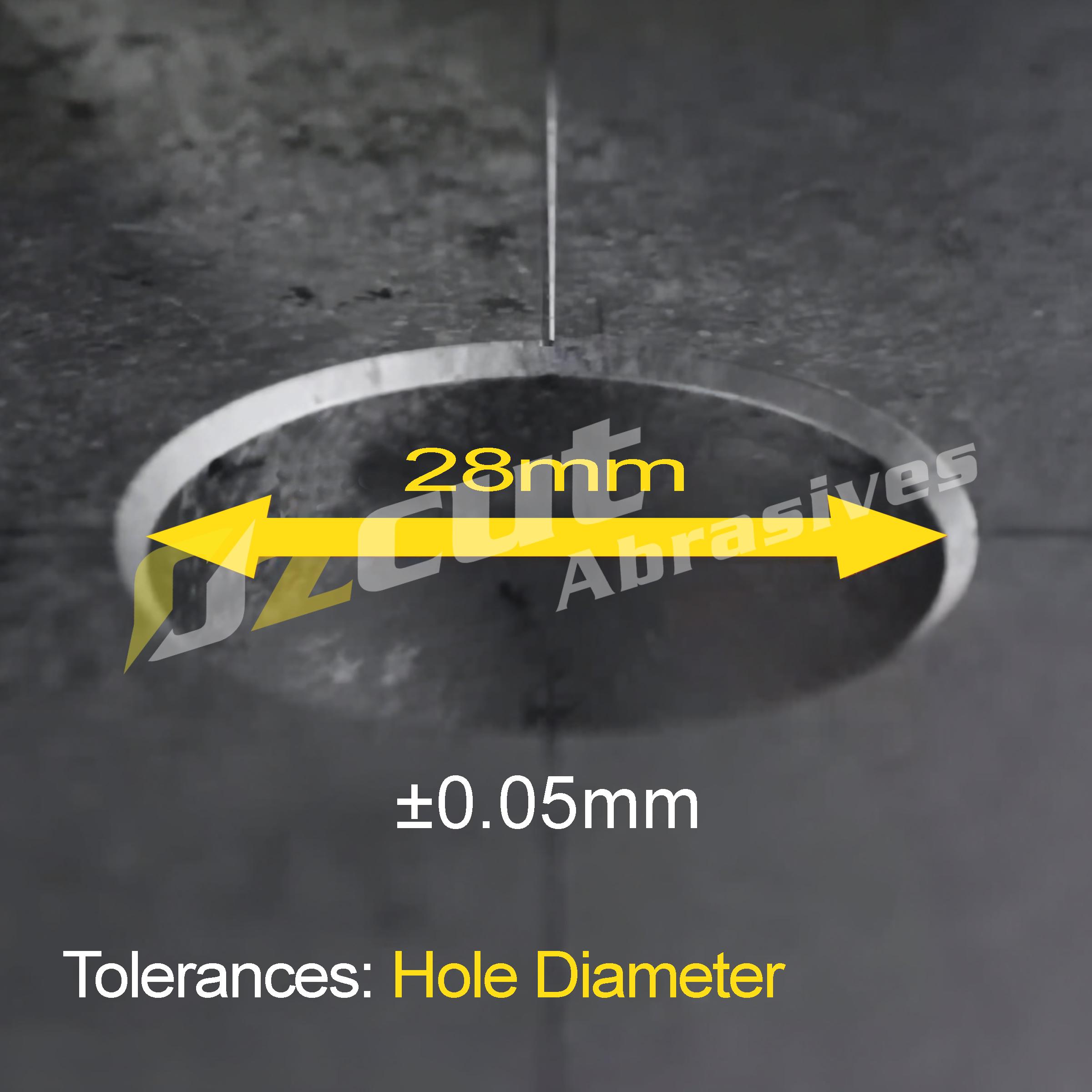

Tolerances: Flatness: ±0.1mm (1m²), Hole Diameter: +0.05mm, Hole Distance: ±0.05mm

Pre-order: ETA 10 weeks

This item is on pre-order. You can order it now and it is expected to ship in about 10 weeks. Our sales team will contact you to confirm the lead time before it ships.

2400x1200mm Nitrided Steel - 50x50 Hole Pattern Overview

A heavy-duty nitrided steel welding table designed for large-scale fabrication, assembly and precision work. Its 50 × 50 mm hole pattern provides extensive fixturing flexibility, while the nitrided surface increases hardness and resistance to spatter, wear and corrosion for a longer service life.

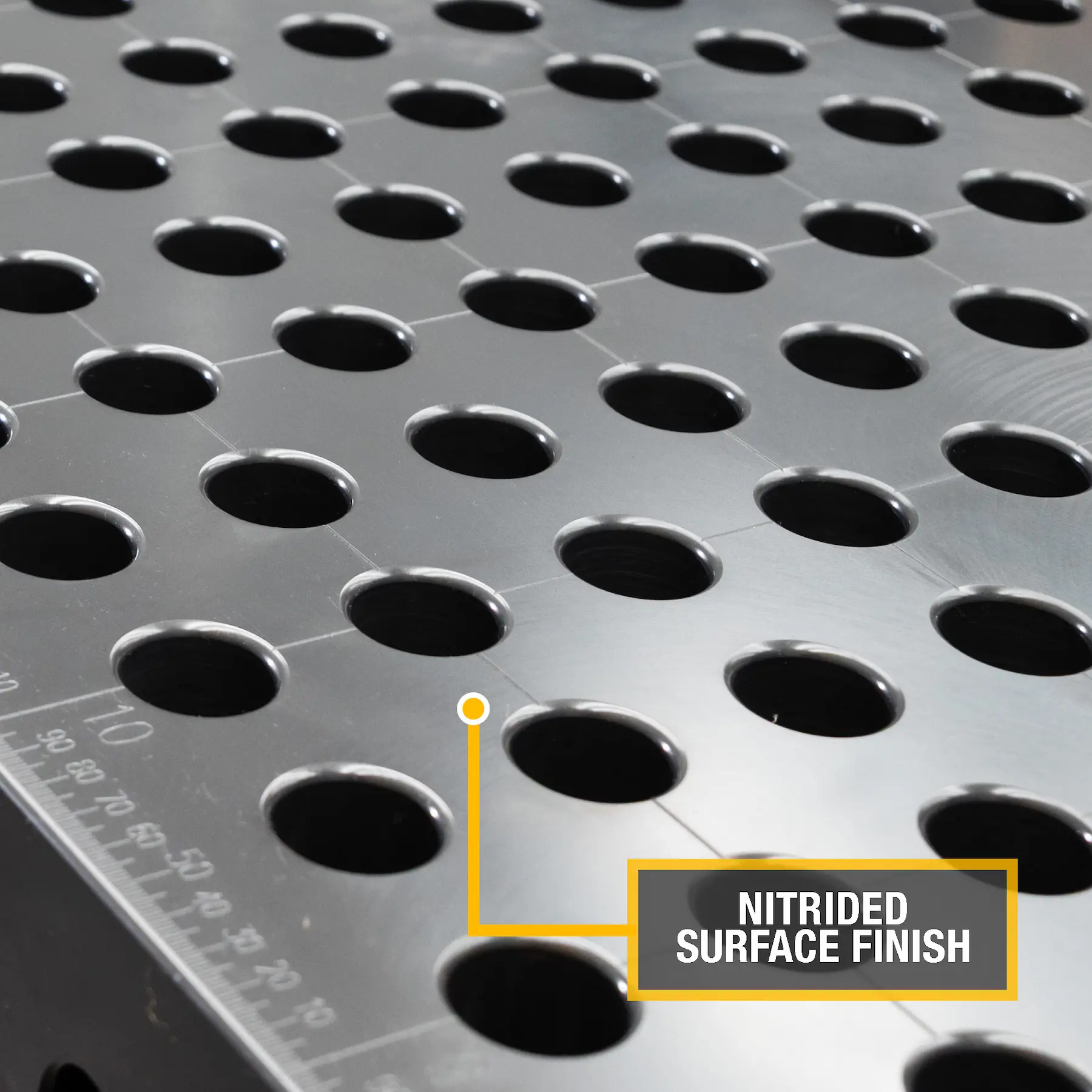

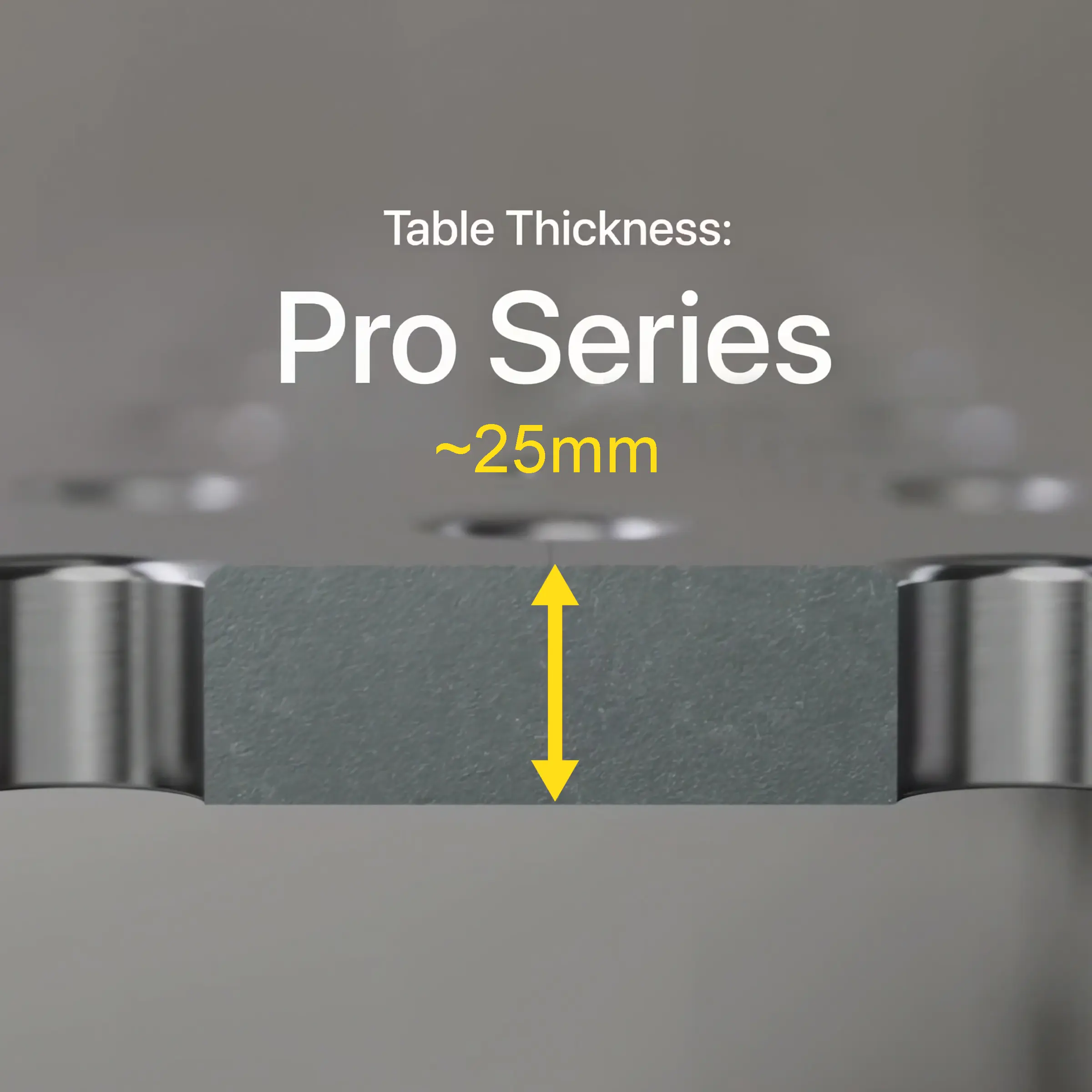

	Heavy-Duty ~25 mm Table Top Fabricated & CNC Machined: Fabricated from 28 mm S355 steel and CNC machined to a precise finished thickness of approximately 25 mm, providing an accurate, durable surface for fabrication, clamping and heavy-duty work. Hardened Nitrided Surface: Hardened and nitrided for improved resistance to weld spatter, wear and corrosion.

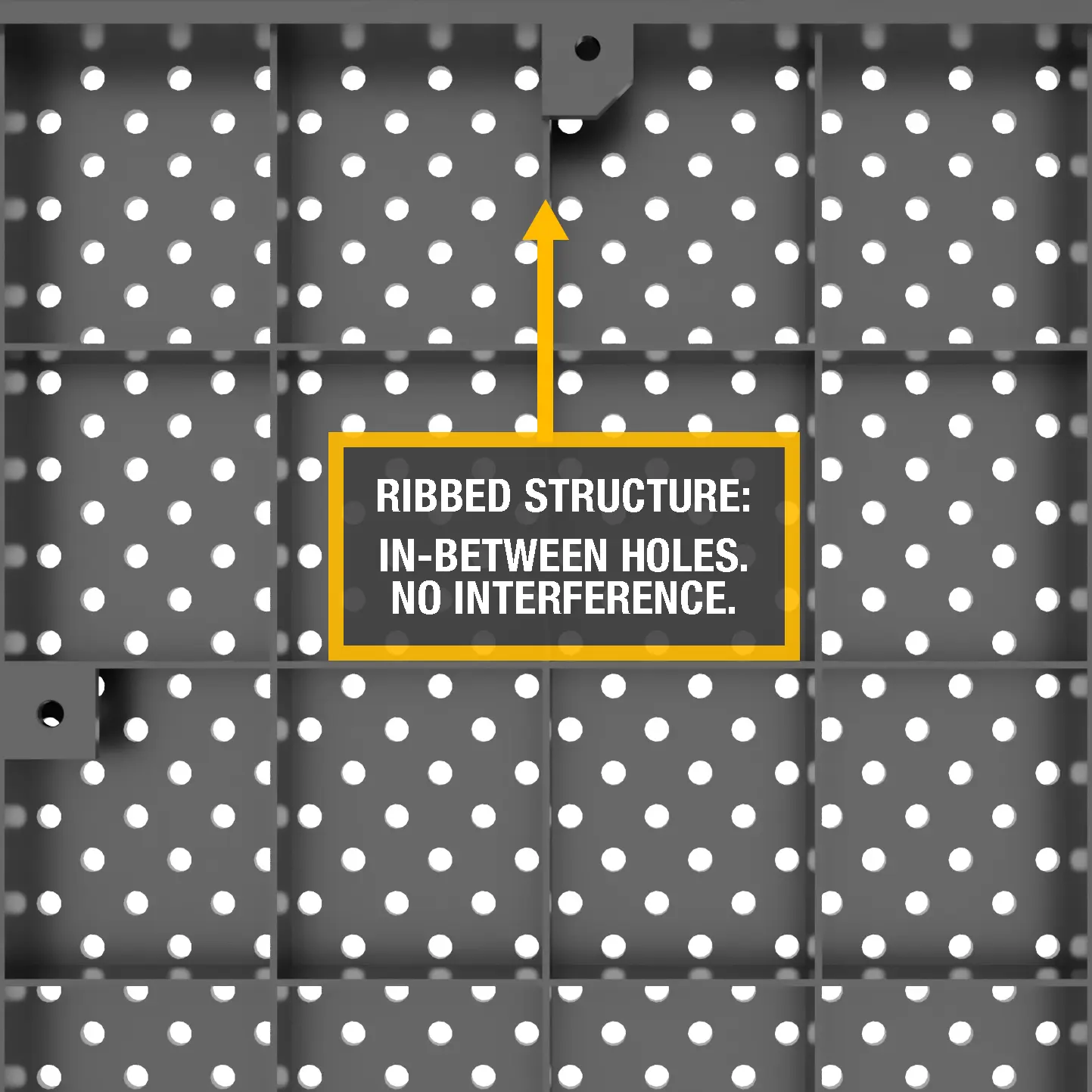

	Zero-Interference Reinforced Rib Structure Full Tooling Access: Ribs are positioned clear of all holes, allowing clamps and fixtures to be used freely across the table. Minimum Deflection: Additional underside ribbing increases structural rigidity and helps minimise deflection under heavy loads and clamping forces.

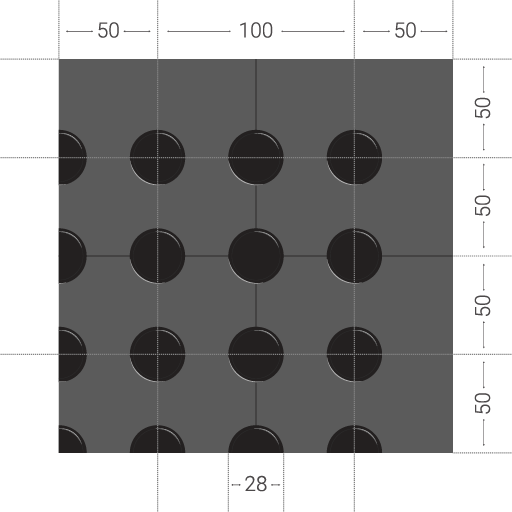

	Precision 50 × 50 mm Hole Pattern Maximum Fixturing Flexibility: High-density 50 × 50 mm hole spacing provides versatile positioning options for clamps, stops and tooling, making it easier to fixture complex and precise workpieces.
	CNC Engraved Metric Perimeter Scale Fast Setup & Positioning: CNC-engraved metric markings are machined directly into the table perimeter, providing a clear, durable reference for quick layout, positioning and alignment in everyday workshop use.

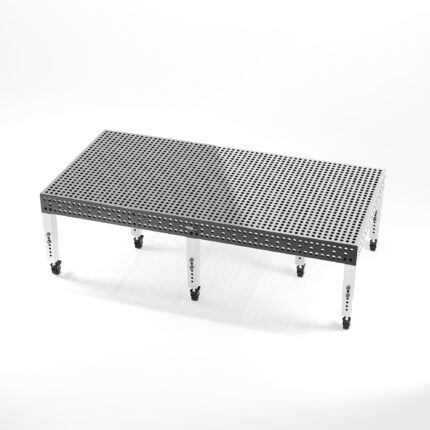

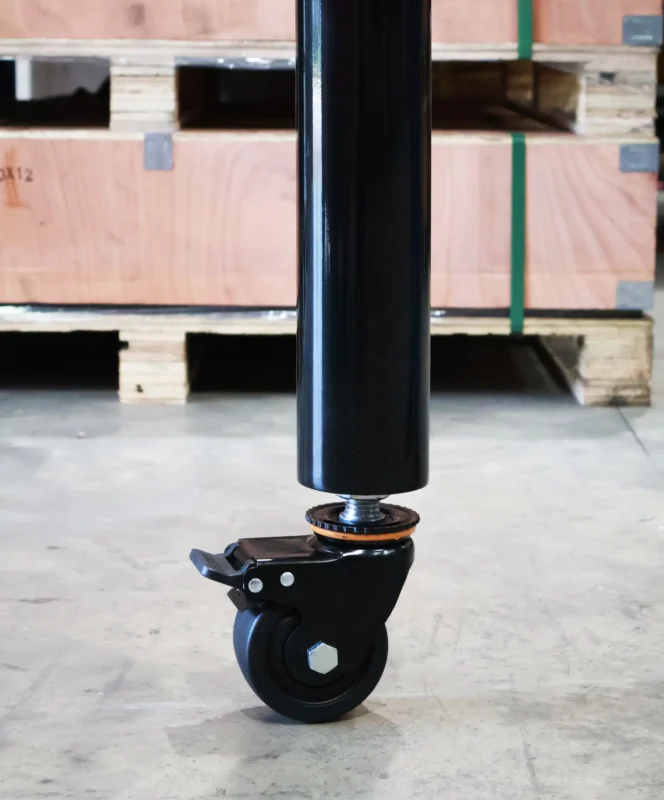

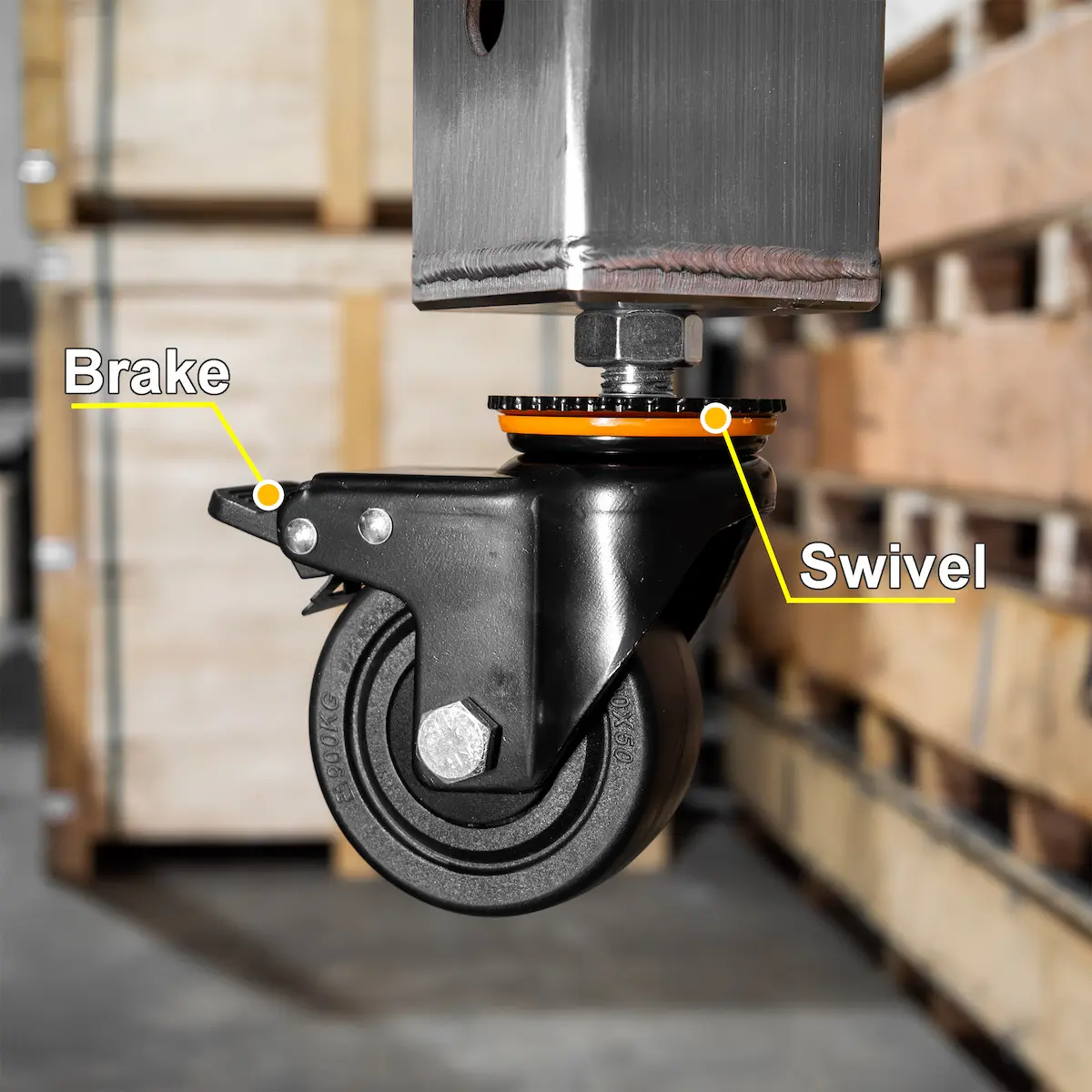

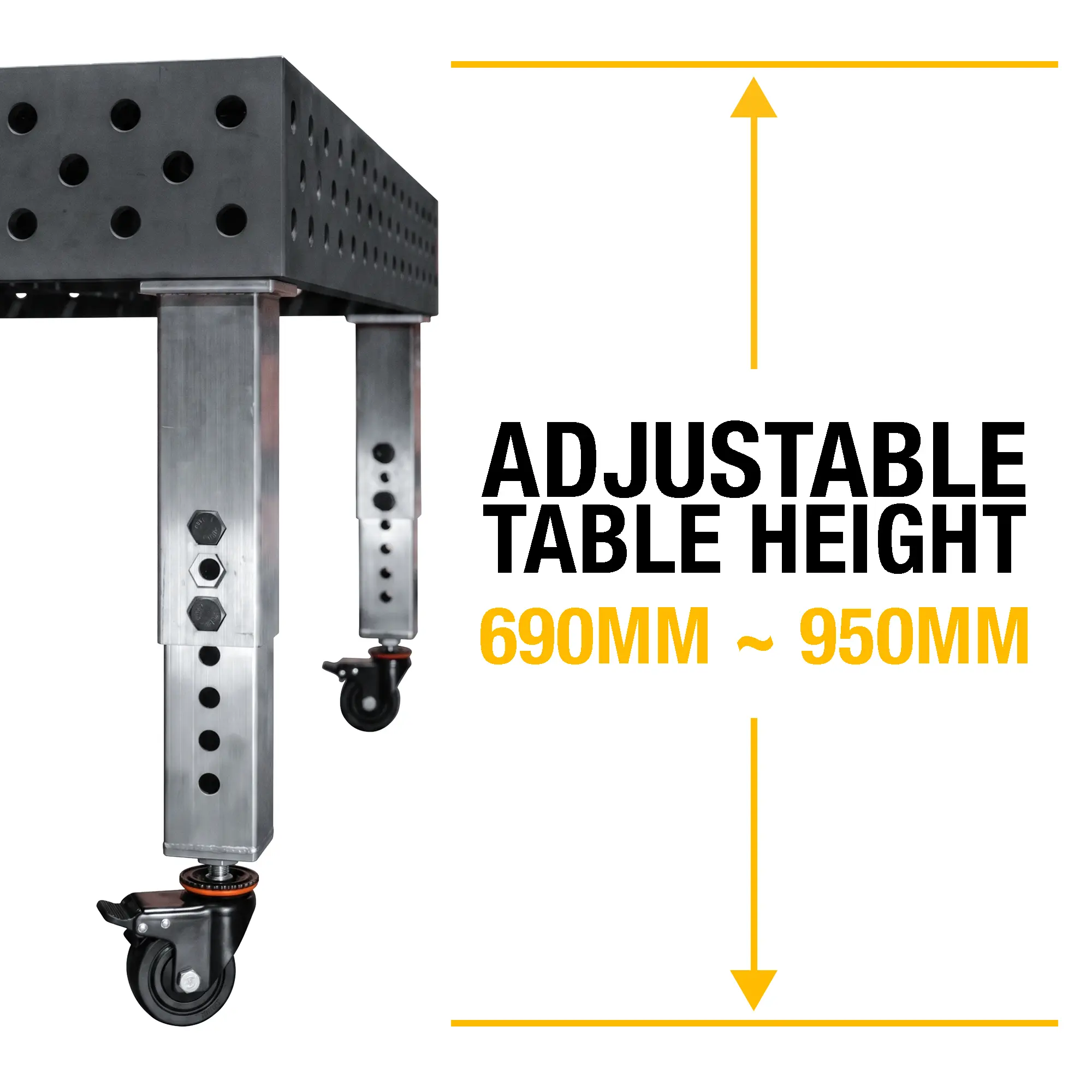

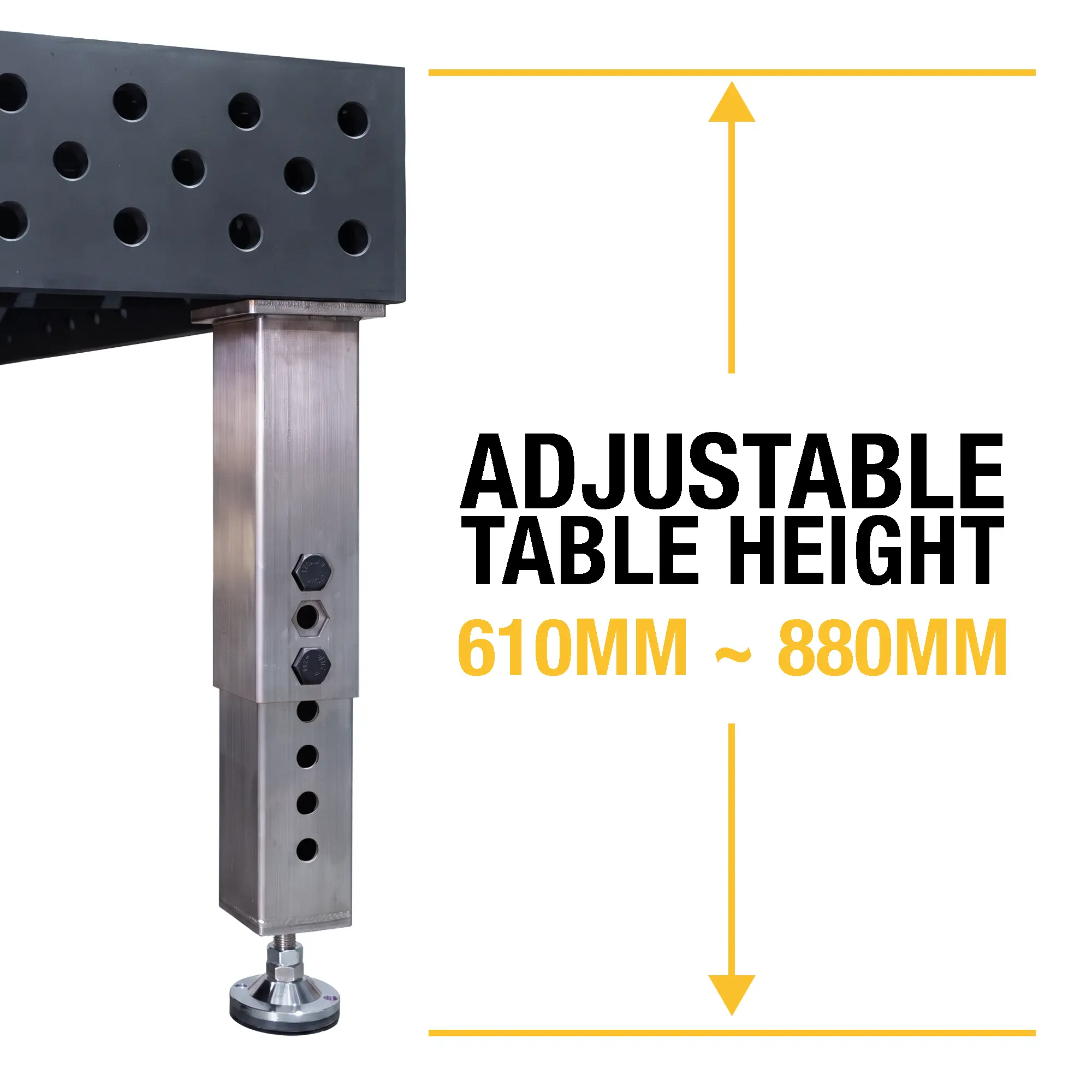

	Table Leg Options A wide range of table leg and foot options to suit different workshop setups, from stable workstations to fully mobile configurations. The standard table height is 900 mm. Other heights can be custom-made to suit your requirements. Standard Round Legs with Casters: 4 mm steel construction with heavy-duty braked leveling casters for strength, stability and easy workshop mobility. Standard Round Legs with Fixed Feet: 4 mm steel construction with fixed leveling feet for a strong and stable workstation. Stainless Steel Adjustable Legs with Casters: Height-adjustable stainless steel legs with leveling casters, combining stability, flexibility and mobility. Stainless Steel Legs with Casters: Heavy-duty stainless steel legs with leveling casters for a stable working platform that can be easily relocated when required.
