Raw Cast Iron
Nitrided Cast Iron
Standard Hole

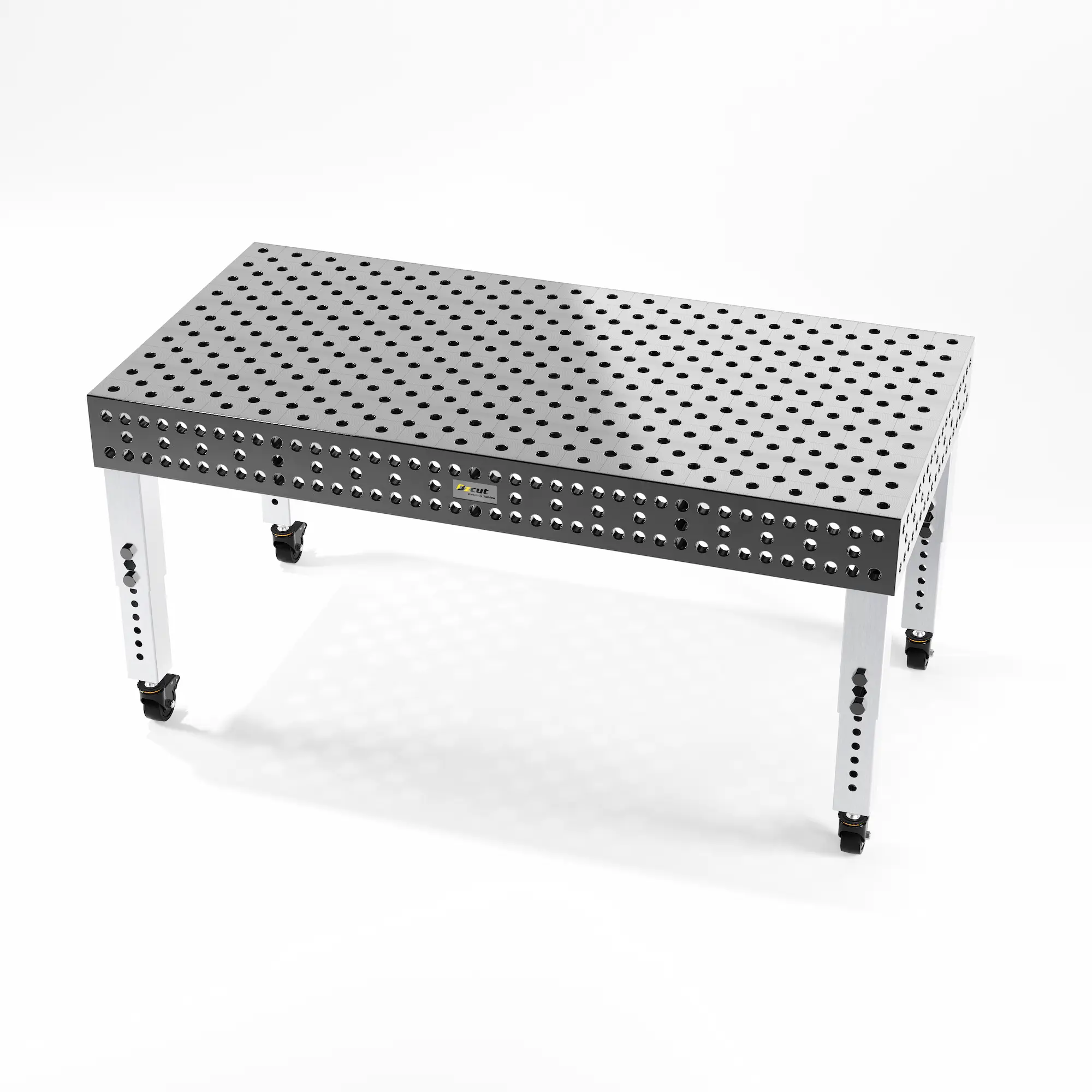

Diagonal Hole
50x50mm
1000x2000mm Pro Series Nitrided Cast Iron 3D Welding Table | CNC Machined
Price range: $3,159.00 through $4,092.00 inc. GST
1000x2000mm Essentials Series Cast Iron 3D Welding Table | CNC Machined
Price range: $2,250.00 through $2,730.00 inc. GST
1000x2000mm Pro Series Nitrided Steel 3D Welding Table | CNC Machined
Price range: $4,161.00 through $5,094.00 inc. GST
| Weight | 600 kg |
|---|---|
| Dimensions | 200 × 100 × 20 cm |
| Material | |
| Tolerances |
Flatness: ±0.1mm (1m²) ,Hole Diameter: +0.05mm ,Hole Distance: ±0.05mm |
| Hole Diameter Standard hole diameter: 28mm (system 28). Custom 16mm system available upon request. |
28mm |
| Size (mm) Welding table top size: L × W × H. Contact us for custom sizes. | |
| Number of Legs (Required) |
4 Legs ,No Legs (Table Top Only) |
Description

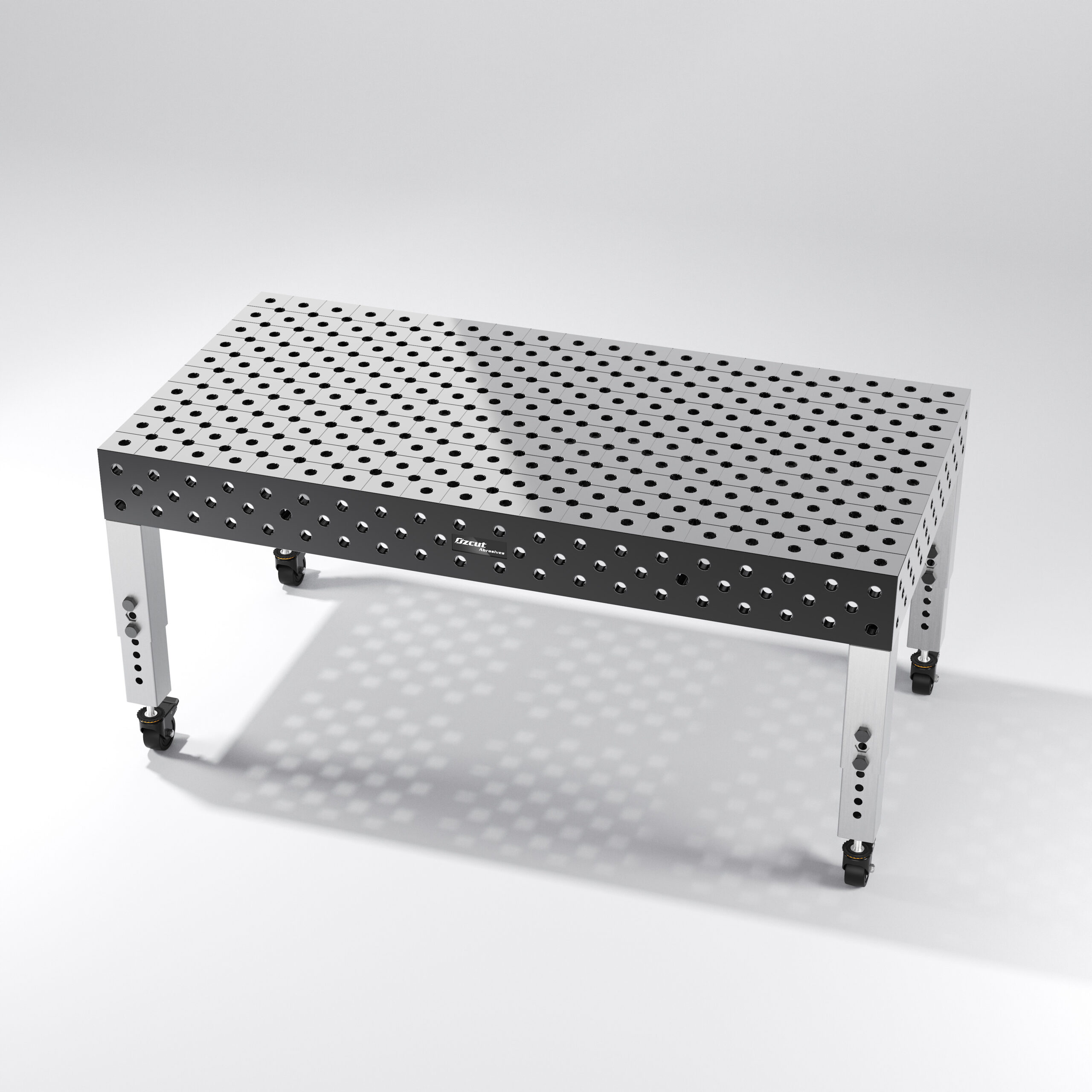

Pro Series Welding Table – Nitrided Steel
Size: 1000 × 2000 × 200 mm
Built for strength, versatility, and long-term performance, the Pro Series Welding Table with a nitrided steel surface offers excellent impact resistance and dimensional stability. The nitrided treatment enhances surface hardness and provides a dark, corrosion-resistant finish that’s ideal for intensive workshop environments.
This table is fully customizable, with flexible configuration options to suit your workshop needs:
- Hole pattern: Standard 4-hole grid or upgraded 5-hole layout
- Ruler engraving: Optional precision-etched ruler
- Leg options: Adjustable or fixed stainless steel legs
- Foot options: Brake-equipped caster wheels or fixed feet
Built to meet the demands of professionals, this version combines industrial-grade durability with modular flexibility.
Still weighing up your options?
Every workshop is different, and the best welding table for you depends on the size of your projects, the features you’ll actually use, and the budget you’re working with.
That’s why we’ve created our Welding Table Calculator & Comparison Tool. Using it, you will be able to:
- See how this table stacks up against other models
- Compare features side by side
- Quickly find out the best value for your needs
More Leg Options
We currently display only two leg variants here, but additional options are available on our Table Leg category page.
For other leg styles or custom lengths, feel free to get in touch with us.
- 900kg load limit per leg
- Custom length available Contact us
locally made in Melbourne from stainless steel square tube
|
SKU |
leg length(foot height included) mm |
table Finished height(mm) |
|---|---|---|
|
WT-LEG-CST-600-SS |
600 |
800 |
|
WT-LEG-CST-650-SS |
650 |
850 |
|
WT-LEG-CST-700-SS |
700 (Default Length) |
900 |
- 1400kg load limit per leg
- Custom length available Contact us
locally made in Melbourne from stainless steel square tube
|
SKU |
leg length (foot height included) mm |
table Finished height(mm) |
|---|---|---|
|
WT-LEG-FIX-600-SS |
600 |
800 |
|
WT-LEG-FIX-700-SS |
700 (Default Length) |
900 |
- 900kg load limit per leg
- 690 - 950mm Finished table height
- Adjustable in 50mm increments
locally made in Melbourne from stainless steel square tube
|
SKU |
leg length (foot height included) mm |
table Finished height(mm) |
|---|---|---|
|
WT-LEG-CST-ADJ-SS |
675-950mm (50mm steps) |
690 - 950mm |
- 1400kg load limit per leg
- 610 - 880mm Finished table height
- Adjustable in 50mm increments
locally made in Melbourne from stainless steel square tube
|
SKU |
leg length (foot height included) mm |
table Finished height(mm) |
|---|---|---|
|
WT-LEG-CST-ADJ-SS |
675-950mm (50mm steps) |
690 - 950mm |
